Octopus Sonar:bit

$13,39

SKU: 704089 Category: Tag:

Description

Description

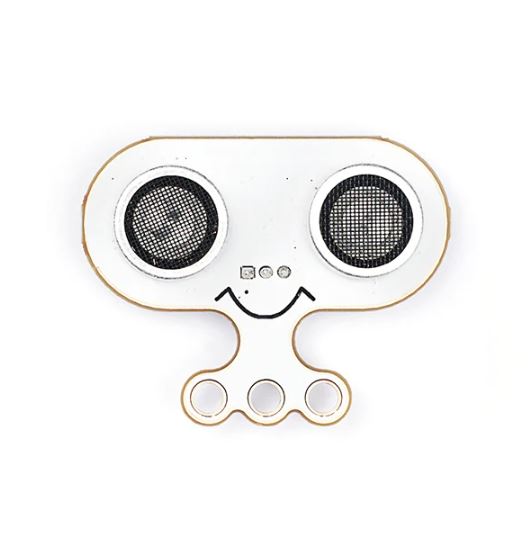

Sonar:bit is an ultrasonic module with a 3-5V working voltage. It is available to be used in a 3.3V or 5V microcontroller system. With only one 3-wire(GVS) cable, it can work properly. Compared to the normal 4-wire ultrasonic module, it has saved one IO port. The measurement range of sonar:bit is 4cm-400cm. It can output stable and accurate measurement data with ±1cm tolerance only. You can use this module for occasions like short-distance measurement, smart cars, robots, micro:bit and Arduino teaching, etc.

Input voltage: 3V~5V

Enable to drive micro:bit or Arduino directly.
Standard 3-wire GVS connector, which occupies 1 IO port only.





Octopus Sonar:bit - why.gr

Dimension



Octopus Sonar:bit - why.gr

Definition

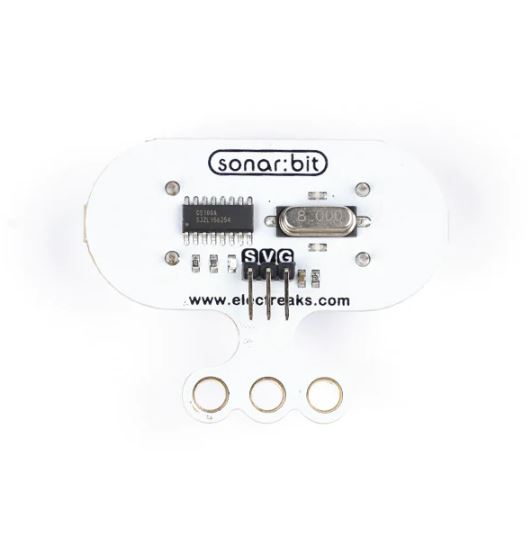

Introduction of major components



Octopus Sonar:bit - why.gr

Transmitter

The transmitter is used to send ultrasonic signals.



Octopus Sonar:bit - why.gr

Receiver

The receiver is for collecting ultrasonic signals.



Octopus Sonar:bit - why.gr

MCU

This is the master chip of sonar:bit.



Octopus Sonar:bit - why.gr

Chip for Sending Signal

This chip is used to drive the transmitter to send out ultrasonic signals.



Octopus Sonar:bit - why.gr

Chip for Receiving Signal

This chip is used to receive and process ultrasonic echo signals as well as give feedback to the master chip.



Octopus Sonar:bit - why.gr

G-V-S Port

G-V-S port allows outer devices control.



Quick Start

Connect sonar:bit to P2 port on sensor:bit and connect micro:bit to your computer.Once completed, you can see the picture below:



Octopus Sonar:bit - why.gr



Octopus Sonar:bit - why.gr
We can see the distance between sonar:bit and the object is displayed on micro:bit in real-time. The unit is centimeters.

Octopus Sonar:bit - why.gr





Programming



Click to open Makecode online editor.

Write your program to assign the returned value of P2 to variable distance and display it on micro:bit screen.
Octopus Sonar:bit - why.gr

You can see the whole program from the link

Sonar:bit Guide

Additional information

Brand

Elecfreaks, MicroBit
